What are blue electrical boxes for?
What are blue electrical boxes for?

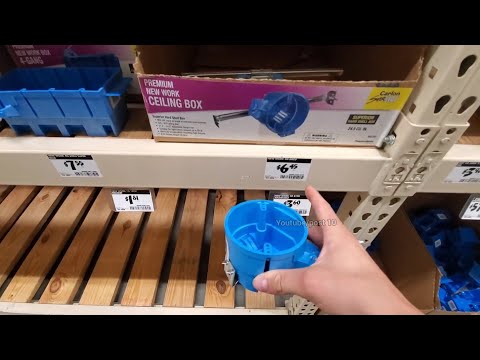

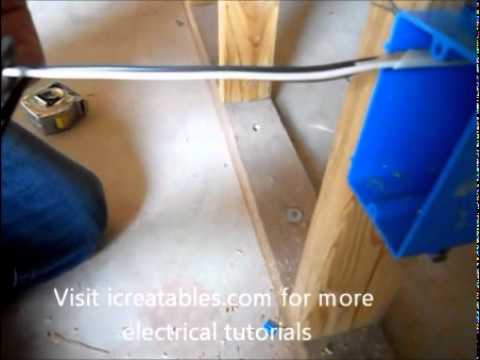

The electrical box is a blue plastic box that gets attached to the wall stud. It holds the wire connections and the light switch or plug. ... Don't buy the flimsy boxes.
What are the blue outlet boxes called?
The Carlon® Super Blue Hard Shell Box combines the features of the Hard Shell Thermoset Box and the Thermoplastic PVC Style Box.
What are blue electrical boxes made of?
Plastic (made off polyvinyl chloride, or PVC) is fast becoming the standard material for electrical boxes, especially for do-it-yourself work. Plastic boxes are lightweight, cheap, and simple to work with.Oct 28, 2021
Can you use plastic electrical boxes outside?
Plastic junction boxes cannot be used with metal conduit, which is required in various installations, such as outdoors or when wiring runs are exposed (not concealed inside wall or ceiling cavities).Jun 8, 2021
Do I need to ground a plastic box?
Because they are plastic, there is no need to attach a ground wire to it. ... Since it is made of a non-conductive material, switches and outlets cannot short out if they touch the side of the box. Plastic boxes usually come with tapped screw holes for easy attachment of switches and outlets.Oct 6, 2018
What does a blue receptacle mean?
Blue outlets have an alarm indicating the loss of ground protection.
What is weatherproof box?
Weatherproof boxes are the solution to achieving a weatherproof connection point outside. These boxes, when connected properly, seal out the weather without worry of moisture getting in and shorting out the connection.Oct 14, 2019
Is it OK to use a plastic junction box?
When to Use Plastic Junction Boxes
Use plastic boxes when: There are non-metallic (NM) cables leading in or out of the box. Metal-sheathed wiring relies on bonding with the metal electric box for grounding and should not be used in plastic boxes. You're doing the job yourself.
Can you use plastic electrical boxes on metal studs?
You can use plastic boxes with metal studs, but they must be the kind of boxes designed for metal studs. Don't use boxes designed for wood studs. It is allowable in most jurisdictions, however there is a safety consideration. If you use an plastic box, the steel stud assembly is not bonded to ground.Jun 11, 2005
Can you use plastic conduit with metal boxes?
Yes, you can. One way to do this is to cement a slip/male thread connector onto the end of the PVC conduit. Insert this into your box and fasten with a 1" lock nut.Aug 11, 2003
What is the difference between old work and new work electrical boxes?
New work boxes, designed to be installed just after the wall is framed but before the surfaces are finished with drywall. They attach to studs. Old work (also called retrofit) boxes, designed to be installed after the walls are finished and are used during remodeling projects. They attach to drywall or plaster.Sep 12, 2021
How do I ground a plastic electrical box?
Plastic boxes cannot be grounded in the same way. But it's still necessary to bring the equipment-grounding conductor into the enclosure to ground devices such as switches and receptacles. Connect the bare or green wire directly to the green screw on the device.
Can you ground outlet to box?
If the outlet is installed in a metal box and that metal box has metal conduit wiring (BX cable) all the way back to the panel, then you can ground your outlet with just a little work. ... If the tester lights up, the box is grounded.Sep 21, 2015
What are the dimensions of an electrical box?
- An octagon electrical box is a common type of box that is typically used for installing light fixtures on a wall or ceiling. They are usually made of metal and come in standard sizes of 4 inches square by 1 1/4, 1 1/2, or 2 1/8 inches deep.
What is an electrical outlet box?
- outlet box - (electricity) receptacle consisting of the metal box designed for connections to a wiring system. receptacle - an electrical (or electronic) fitting that is connected to a source of power and equipped to receive an insert.
What are electrical boxes?
- Electric box. A metal box, on one face with round knock-out openings on the ends for conduits to be attached to pull wires to the box. The three types are outlet boxes to fixtures, a switch box to control the flow of current, and a pull box to conductors at bends and long runs. Illustrated Dictionary of Architecture Copyright © 2012, 2002,...
What is floor box electrical?
- Electrical floor boxes are electrical outlets fixed flush on the floor to provide supply points for users in an office or industrial space. In a large space like an office, it is neither convenient nor aesthetic to provide every user wall supply points.
Can you use a plastic box for electrical wiring?Can you use a plastic box for electrical wiring?
Using metal-sheathed wiring with plastic electrical boxes, without taking other grounding measures, severs that ground and is highly dangerous. Plastic electrical boxes are easy for do-it-yourself home remodelers to work with. The least expensive plastic boxes come with pre-attached nails for nailing into studs.
What is the best material for an electrical box?What is the best material for an electrical box?
Plastic Electrical Boxes. Plastic (polyvinyl chloride, or PVC) is fast becoming the standard material for electrical boxes, especially for do-it-yourself work. Plastic boxes are lightweight, cheap, and simple to work with. Holes are easy to punch out in the back or sides.
What is the blue plastic box on the wall below?What is the blue plastic box on the wall below?

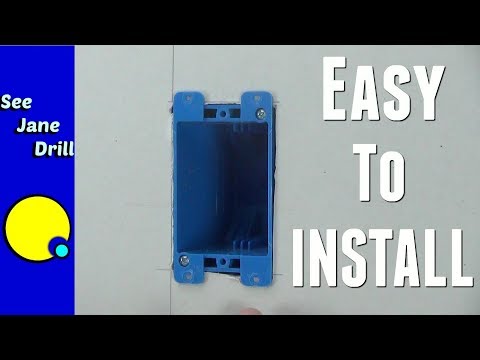

The blue plastic box at below left is a new-work electrical box with nails intended for driving into a wall stud or ceiling joist, while at below right is an old work electrical box intended for retrofit box installation through a drywall or plaster ceiling or wall.
Can you use plastic electrical boxes with Romex cables?Can you use plastic electrical boxes with Romex cables?
It is recommended but not required that you use a plastic electrical box when you have Romex (or NM) cables leading in or out of the box. Electrical code does not require that you use NM cable with plastic boxes. The overriding concern is that the application should be grounded.
What is the box called for electrical?
An electrical junction box (also known as a "jbox") is an enclosure housing electrical connections. Junction boxes protect the electrical connections from the weather, as well as prevent people from accidental electric shocks.
How many 14 2 wires can you put in a receptacle box?
Capacities for two common sizes: Single Gang Boxes: A total capacity of 18 cubic inches allows for nine #14 gauge wires, eight #12 gauge wires, or seven #10 gauge wires. This is a wires-only capacity. With one device added to the box, subtract two wires in each category.
How many wires can you run off one outlet?
1 Answer. The receptacle manufacturer should document how many wires can be put where. In general, if there are screws, you can use at most one wire per screw. For quickwire/backwire holes, you can only use one wire per hole, and further, that one wire can only be 14 gauge.Sep 9, 2012
Can cable and electrical in the same box?
You can't put cable and power in the same box. They need to be separated. NEC code '05 820.133(2) says Coaxial cable shall be seperated atleast 2" from conductors of any electic light, power, etc.Feb 23, 2008
What is a 1900 box?
A 1900 Electrical Box is defined as a standard 4 inches (4'') square electrical switch box which is the combination of a gas and electrical box. It is the most commonly used box when a simple switch box is not big enough.Feb 14, 2021
What is square box electrical?
For this reason, 4-inch square boxes often are used to run multiple conductors in two or more directions. They are also commonly used as junction boxes and can also be installed in ceilings or walls for supporting lighting fixtures or for housing switches or receptacles when matched with the proper cover plates.Jun 15, 2021
